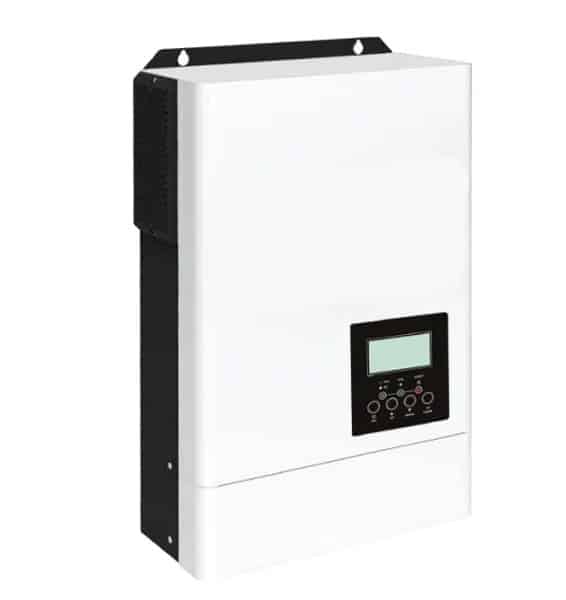

Solar Off Grid Inverter

Compatible work with lifepo4 battery.

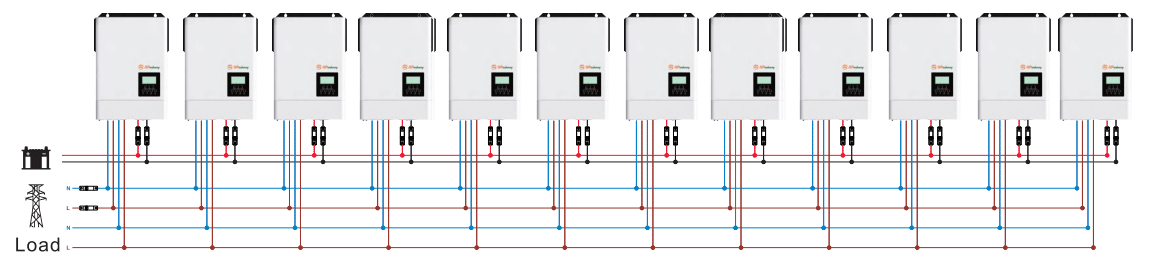

Parallel operation up to 12 units in 1phase or 3phase.
Direct Plug WlFl Dongle Supported-No additional cables required just plug and play.
Pure sine wave.
Power factor1.0.
PV input 500Vdc Max.
Built-in MPPT 120A.
Capable to work without battery.
Detachable dust cover for harsh environment.
WiFi remote monitoring optional.
Support multiple output priority:UTL,SOL,SBU,SUB.
EQ function to optimize battery performance and extend lifecycl.

MODEL	M6200-48PL
Capacity	6.2KVA / 6.2KW
Parallel Capability	YES, 12 Units
Lithium Battery Activation	YES (By PV or Utility)
Lithium Battery Communication	YES (RS485)
Input
Nominal Voltage	230VAC
Acceptable Voltage Range	170–280VAC (PC), 90–280VAC (Home Appliances)
Frequency	50 / 60Hz (Auto sensing)
Output
Nominal Voltage	220 / 230VAC ±5%
Surge Power	12400VA
Frequency	50 / 60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (PC) / 20ms (Home Appliances)
Peak Efficiency	94%
Overload Protection	5s @ ≥140% load, 10s @ 110–140% load
Crest Factor	3:1
Admissible Power Factor	0.6–1 (Inductive or Capacitive)
Battery
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Over-Charge Protection	63VDC
Charging Method	CC / CV
Solar Charger & AC Charger
Solar Charger Type	MPPT
Max PV Array Power	6500W
Max PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60–500VDC
Max Solar Input Current	27A
Max Solar Charge Current	120A
Max AC Charge Current	80A
Max Charge Current	120A
Physical
Dimensions (D × W × H)	450 × 300 × 130 mm
Package Dimensions (D × W × H)	540 × 390 × 210 mm
Net Weight	12 kg
Communication Interface	RS232 / RS485
Environment
Operating Temperature Range	-10°C to 50°C
Storage Temperature	-15°C to 50°C
Humidity	5%–95% RH (Non-condensing)
