SilicaPro

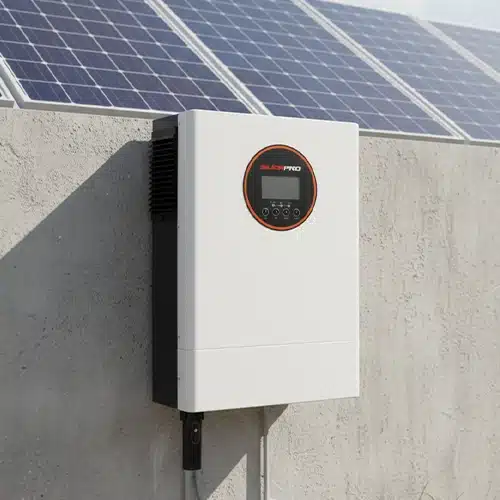

Solar Battery Hybrid Controller

Low battery voltage input
Reliable protection against short-circuit, overvoltage, undervoltage, overload, etc
IP43 intelligent air-cooled design enhances system reliability and service life

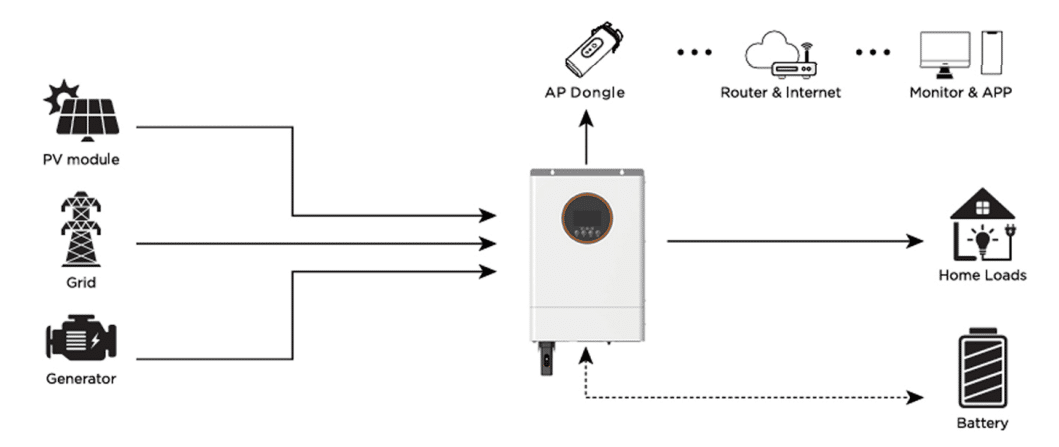

Multiple working modes: The priorities of PV power, utility power, and battery using the LCD screen
DSP control, dual-loop technology, and pure sine-wave output
Supports real-time monitoring via APP for intelligent and efficient energy management

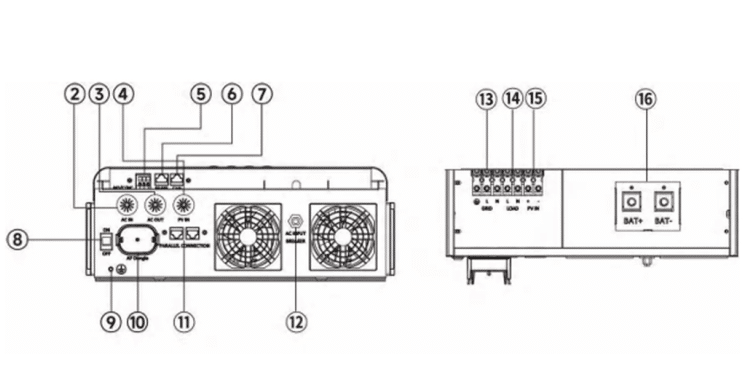

9. Ground
10. AP Dongle
11. Parallel communication ports
12. AC Input Breaker
13. Grid L/N/PE
14. Load L/N
15. PV input +/-
16. BAT+/BAT-

MODEL	AHS-6.3
Dimensions (W×H×D)	380 × 576 × 141 mm
Weight	12.8 kg
Ingress Protection	IP43
Operating Ambient Temperature	-10°C to 55°C
Storage Temperature	-15°C to 60°C
Relative Humidity	5% to 95%
Cooling	Air-cooled by smart fans
Communication Interface	RS485 / CAN
Max. Parallel Units	6
Safety & EMC Compliance	EN/IEC62109-1/-2; EN/IEC-6-1/-2/-3/-4; EN/IEC62920
Battery Data
Battery Voltage Type	12V	24V	48V
Float Charging Voltage	13.5V	27V	54V
Overcharging Protection Voltage	15V	30V	60V
Battery Type	Lead-acid batteries / Lithium batteries
Charging Mode	Three-stage charging (lead-acid); Default charge curve or BMS communication (lithium)
Max. DC Discharge Current	135A	135A	135A
Max. Charge Current (PV)	85A	105A	135A
AC Output Data
Max. Output Apparent Power	1000VA	2500VA	6300VA
Peak Output Apparent Power	2000VA	5000VA	12600VA
Output Waveform	Pure sine wave
PV Input Data
Max. PV Input Power	6500W
MPPT Voltage Range	60 – 450VDC
MPPT Efficiency	99.9%
